Centrifugal Fan
Centrifugal Fans normally produce more static pressure than Axial Flow Fans of the same wheel diameter and the same running speed becouse of the additional centrifugal force, which is missing in Axial Flow Fans. Type of blades;
- Forward curve, backward inclined, airfoil, radial tip and radial blade.
Cabinet Fan (MSDT Series)
Specifications:-
- Forward multi-blade impeller.
- Low pressure type: DT9, DT10, DT12, DT15, DT18, DT20, DT22, DT25, DT28, DT30.
- Air volume: 200 to 54000 m3/h pressure: up to 800 Pa.
- High pressure type: DT250, DT280, DT315, DT355, DT400, DT450, DT500, DT560, DT630, DT710, DT800, DT900, DT1000.
- Air volume: 200 to 100000 m3/h pressure: up to 1100Pa.
- Suitable for fire-protection expiration.

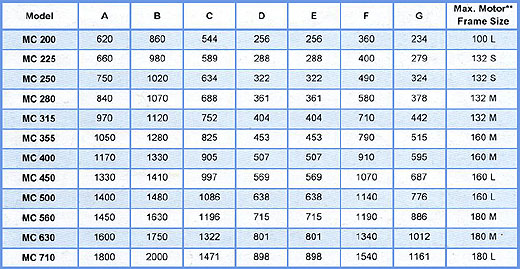

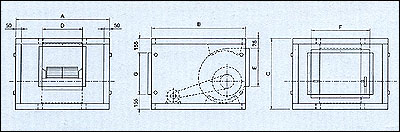

Cabinet Fan (Commercial MC Series)
Specifications:-
- Panel type construction which enable site assemble if necessary.
- Size from 200 - 710 mm impeller diameter.
- Forward curved and backward curve impellers are available.
- Internal lining is available (optional).
- Suitable for 90" and 270" orientation.
- Electric motor and transmission accessories are optional.
Chemical resistent (MSV Series)
Features:-
- Complete FRP construction (impeller and casing).
- Capacity from 100 to 14,000 m3/hr at pressure up to 9" W.G.
- Resistant to the corrosive attack.
Centrifugal Fan-Material Handling (EX Series)
Specification:-
- With capacity requirements from 200 cfm to 50,000 cfm in a pressure range of 1/2" W.G to 2.4" W.G.
- Radial wheels offer greater abrasive resistance, materials handling, with solids passing through the fan, and high pressure air handling at temperature up to 600" F.
- Three basic wheel styles:
1. GP (General Purpose Wheel)2. MH (Material Handling Wheel)3. AH (Air Handling Wheel)- Material of constructions;
- Mild steel, FRP and Stainless steel.Centrifugal Fan (MSC Series)
Features:-
- Backward incline and Airfoil Design.
- Capabilituies up to 250,000 cfm and 14" W.G are available.
- Size available from 12 1/4" t0 73" single and double width.
- Maximum efficiency with low noise.
- All centrifugal wheels are balanced after fabrication.
- Material of construction:
- Mild steel, FRP and Stainless steel.Cabinet Fan (MC Series)
Specifications-
- Panel type construction which enable site assemble if necessary.
- Size from 250 - 710 mm impeller diameter.
- Forward curve and backward curve impellers are available.
- Internal lining is available (optional)
- Suitable for 90" to 270" orientation.
- Electric motor and transmission accessories are optional.
- Oil drainage at base.
Centrifugal Fan (DWDI-FCV)
Features :
- Metric system belt-driving, double inlet, forward multi-blade impeller.
- High efficiency and low noise.
- Type: D, K, H, 2D, 2K, 2H Size: from 160 to 1000 Total 17 models.
- Air volume: from 200 to 118000 m3/h.
- Total pressure: up to 2200 Pa.
Centrifugal Fan (DWDI-BCV)
Features :
- In Metric system, belt-driving, double inlet.
- Design with high efficient, type impeller.
- Size from 315-1000 in all 11 models.
- Airflow ups to 100000 m3/h.
- Air pressure ups to 3200 Pa.
